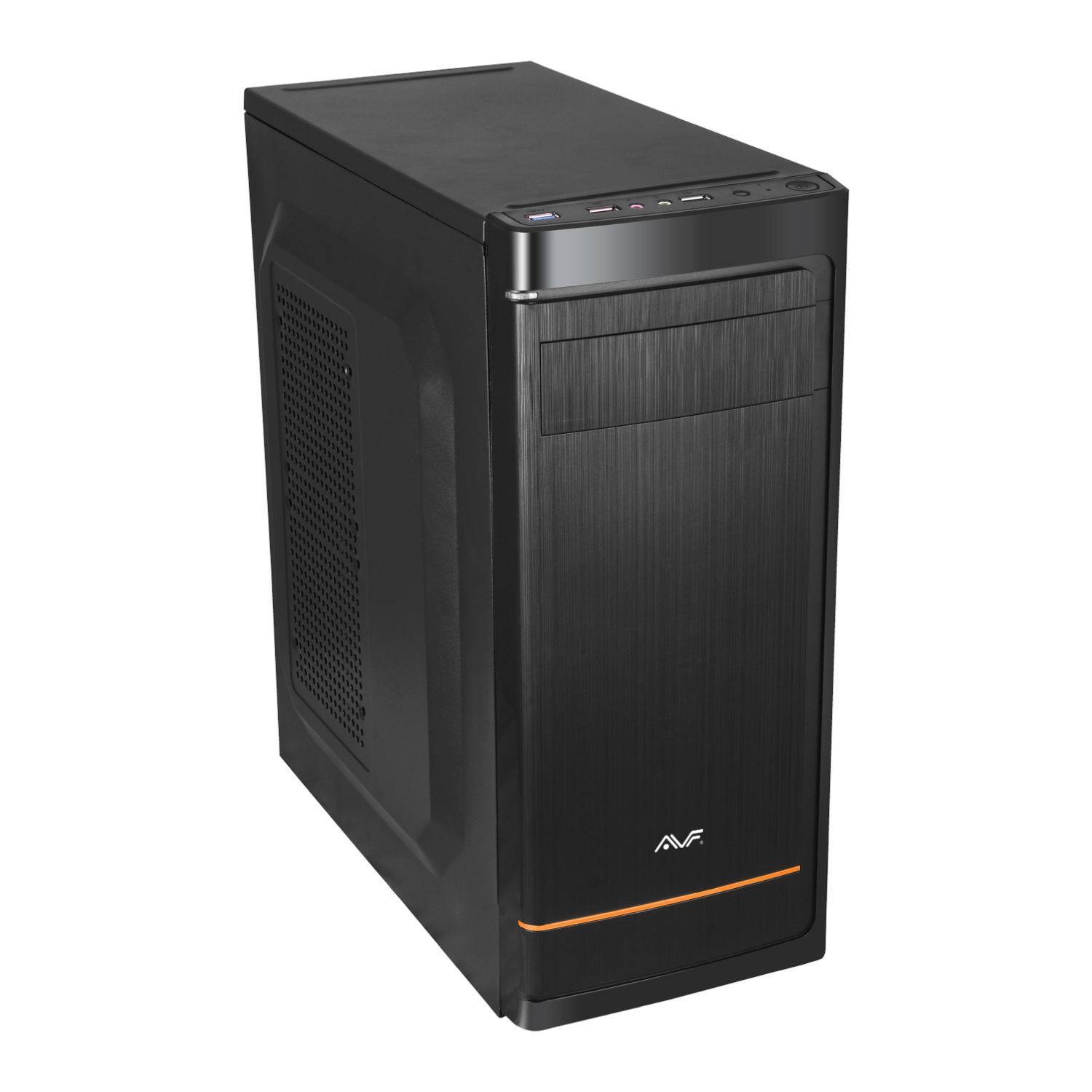

SHIELDO BLACK SERIES (Model: ACSD573-BOU3/B7U3/BRU3)
GALLERY
SPECIFICATIONS
| 1 | Model | ACSD573-BOU3(Orange), ACSD573-B7U3(Blue), ACSD573-BRU3(Red) |
|---|---|---|
| 2 | Chassis | 0.4mm SPCC |
| 3 | M/B Form Factor | Micro -ATX, ATX |
| 4 | 3.5” HDD | 5 (Hidden), 1 (Exposed) |
| 5 | 5.25” | 1 (Exposed) |
| 6 | 2.5” | 3 (Hidden) |
| 7 | PCI Slots | 7 slots |
| 8 | I/O Panel | USB 3.0 x 1, USB 2.0 x 2, HD Audio x 1 |
| 9 | Fan | Side Panel: 1 x 120 mm fan (optional) Back Panel: 1 x 80 mm fan (optional) Front Panel: 2 x 120 mm fan (optional) |
| 10 | Power Supply | 500W, 2xSATA, 2 IDE, CPU 8pin, 1.2m UK Power Cable |
| 11 | Case Dimension | L405 x W175 x H405 mm |
| 12 | Hardware Dimension | L375 x W175 x H405 mm |
| 13 | Carton Dimension | L450 x W217 x H455 mm |
| 14 | Gross Weight | 4.5 kg |
| 15 | Net Weight | 4 kg |
